Low Cost LPC 2148 Kit | LPC 2148 Development Board Kit

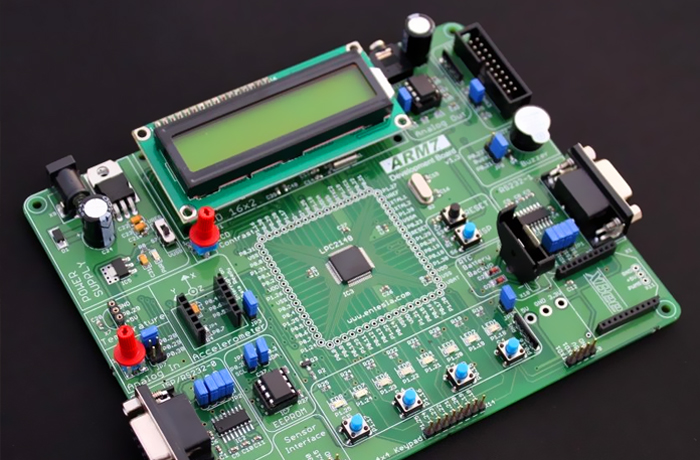

LPC 2148 DEVELOPMENT KIT based on ARM provides the perfect starting point for those new to embedded systems as well for the development. Kit it has powerful microcontroller ie ARM7 development board with a rugged platform. This is low cost board. ARM7 LPC2148 Development Kit, is proposed to smooth the progress of developing and debugging of various designs encompassing of High speed 32-bit MCU from NXP. The board supports NXP’s LPC214x family devices with various memory and peripheral options. It integrates on board two UARTs, LEDs, Relays, Motor Interface, keypads, 7 Segment, an ADC input and GLCD/LCD Display to create a stand-alone versatile test platform.

LPC Development Kit Features

Following are the features of LPC Development Kit:

  • ARM7TDMI LPC2148 microcontroller from NXP with 512 Kbyte program Flash
  • 32+8 Kbyte SRAM with 12 MHz crystal
  • 32.768 kHz RTC crystal
  • Onboard Peripherals
    1. 8 Nos. LED
    2. 4×4 matrix Keypad
    3. 16×2 Character LCD with back light
    4. 128×64 GLCD with back light
    5. 4 Nos. 7-Segment Display (SPI)
    6. Potentiometer, Temperature Sensor
    7. EEPROM, Stepper Motor Interface
    8. SPDT Relay
    9. RTC with Battery Backup
    10. 2 Nos. UART (RS232)
    11. USB 2.0 device interface
    12. Piezoelectric buzzer
    13. Reset
    14. ISP
    15. EINT Push Buttons
  • Connectors
    1. Type – B USB connector
    2. JTAG
    3. 2.1 mm power supply connector
  • Power supply
    1. 9 to 15 VDC
    2. 200 MA using 2.1 mm power connector

Contact enquiry@innowitech.com for commercial aspects.
